Draw

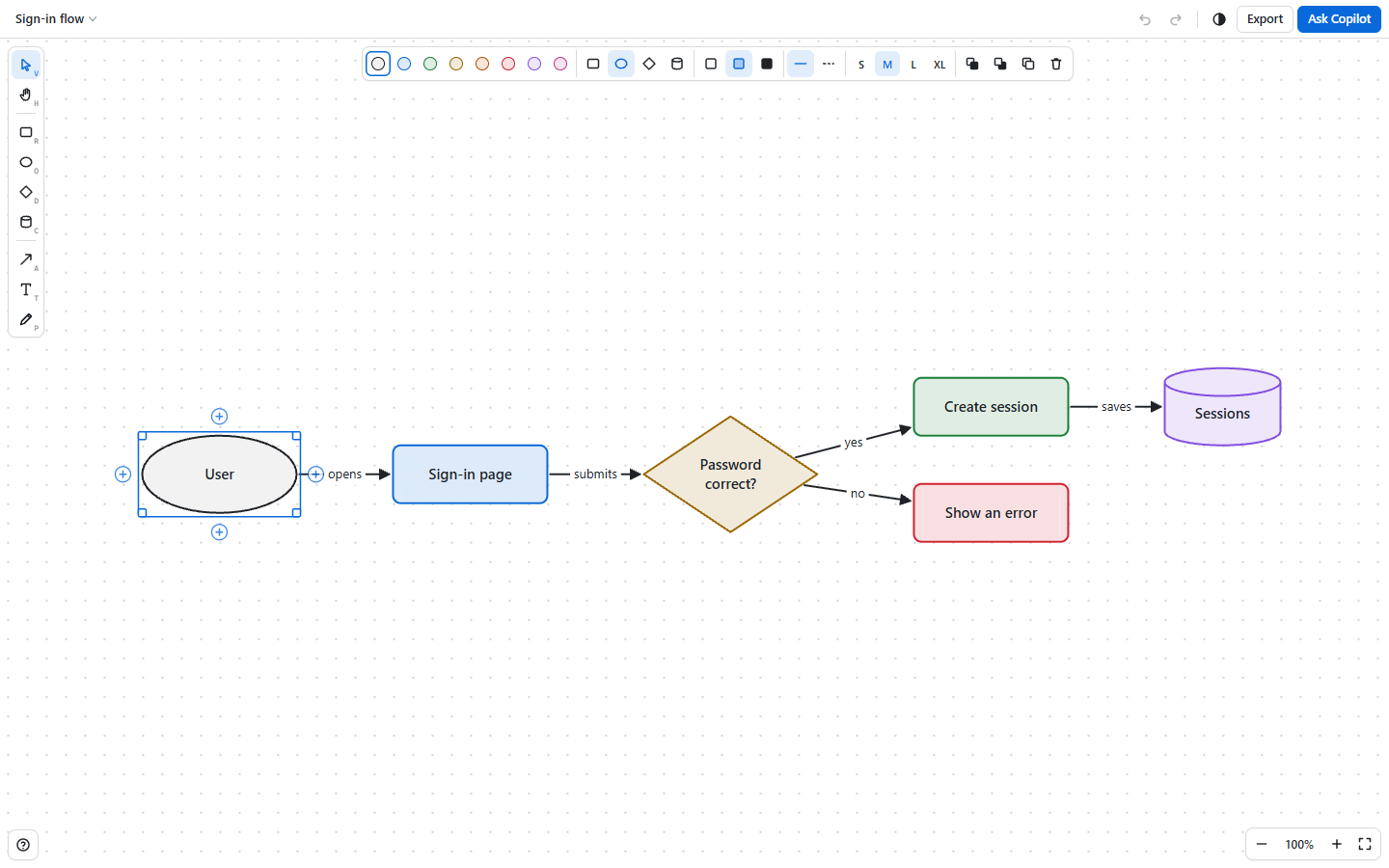

Draw simple diagrams in a GitHub Copilot app canvas: boxes, ellipses, diamonds and databases joined by arrows that stay attached, plus text and a freehand pen. You and Copilot work on the same drawing.

What it does

• Draws rectangles, ellipses, diamonds, databases, arrows, text and freehand pen strokes. Arrows stay attached when you move shapes.
• Connects shapes quickly: hover a shape and drag a + handle to another shape, or click + to add the next step. From the keyboard, Ctrl+Arrow adds the next step, and so does Tab while you type a shape's label.
• Works without a mouse: add, select, connect, move and resize shapes from the keyboard. Screen readers announce the current tool, the selected element, and each arrow, resize or delete.
• Styles shapes and arrows with 8 colors, 3 fills, dashed lines, 4 text sizes, arrow heads, and straight, elbow or curved routes.
• Snaps to a grid, and supports zoom, pan, undo, redo, copy, paste and duplicate.
• Keeps several drawings per session. Switch, rename, duplicate or delete them from the drawing menu.
• Exports PNG or SVG files, or copies the drawing as an image.
• Ask Copilot sends the drawing to the chat with your question, both as an image and as a text outline with element ids.
• Matches the Copilot app's light or dark theme, or stays light or dark if you prefer.

Install

Ask Copilot to install the extension:

Install this extension: https://github.com/github/awesome-copilot/tree/main/extensions/draw

Reload extensions, then ask Copilot to open the draw canvas.

Drawing with Copilot

Ask in the chat, for example "Draw how our sign-in flow works" or "Add a cache between the API and the database". Copilot's changes show up live, and you can undo them in the canvas. The canvas provides these actions:

Action	What it does
get_drawing	Reads the drawing as an outline with element ids, plus what the user has selected. A big drawing comes back in parts
set_diagram	Replaces the drawing with nodes and edges, laid out automatically
add_elements	Adds nodes, edges and text next to what is already there
update_elements	Changes labels, shapes, colors, sizes, positions and arrow ends
delete_elements	Deletes elements, and any arrows attached to deleted shapes
layout	Re-arranges the shapes into neat layers that follow the arrows
clear	Removes everything
export_image	Saves a PNG or SVG and returns its path, so Copilot can look at the result
list_drawings	Lists the drawings in this session
open_drawing	Shows another drawing, or creates a new one
select_elements	Selects elements to point them out to the user
set_theme	Switches between matching the app, light and dark

Keyboard shortcuts

Press ? in the canvas to see all of them. Tab moves focus between the canvas and its toolbars. On macOS, use Cmd instead of Ctrl.

Keys	Action
V, H	Select, pan
R, O, D, C	Rectangle, ellipse, diamond, database
A, T, P	Arrow, text, pen
N, Shift+N	Select the next or previous element
Enter or double-click	Edit a label
Enter with a shape or text tool	Add one in the middle of the view
Enter with the arrow tool	Start an arrow at the selected shape, then press it again to end the arrow at the next shape you select
Tab while typing a shape's label	Add the next step (Shift+Tab adds a sibling)
Ctrl+Arrow	Add a shape in that direction
Arrow keys	Move the selection (Alt: 1 px, Shift: 50 px), or pan when nothing is selected
Ctrl+Shift+Arrow	Resize the selected shape
Ctrl+Z, Ctrl+Shift+Z	Undo, redo
Shift+1	Fit the drawing on screen
Esc	Cancel, or go back to the canvas from a toolbar

Where your data goes

• Drawings are JSON files in the current session's files/drawings folder, and exports are saved in files/drawings/exports. Each session has its own drawings.
• If a drawing can't be written to disk, the canvas says so, keeps your changes in memory and keeps trying to save them.
• The theme choice is saved in ~/.copilot/draw/settings.json (under COPILOT_HOME when it is set) and applies to every session.

Security

The canvas is served by a local server that listens on 127.0.0.1 on a random port. It checks the Host header, requires a random per-server token on every API request, and sends a content security policy that only allows scripts and connections from itself. The extension has no dependencies besides the Copilot SDK and makes no requests to the internet. The only process it starts is your file manager (Explorer, Finder or xdg-open), when you choose Show in folder after an export.

Tests

The tests use Node's built-in test runner, so there is nothing to install. From this folder, run:

node --test
